Aero Telle Bridge Pickups

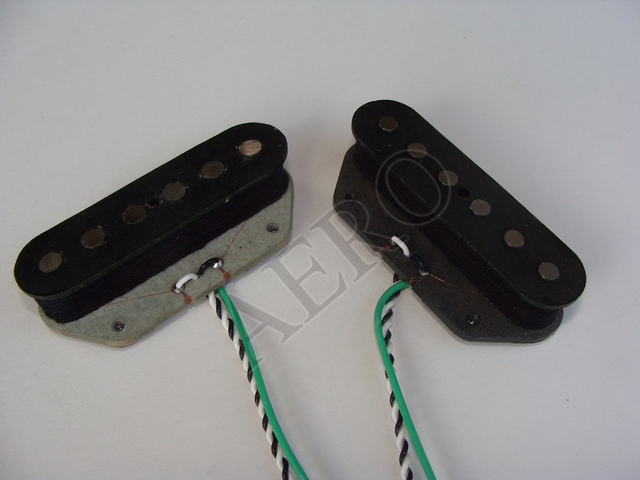

Aero Telle Bridge Pickup

Type 1

1 of 9 Images

Model Description +

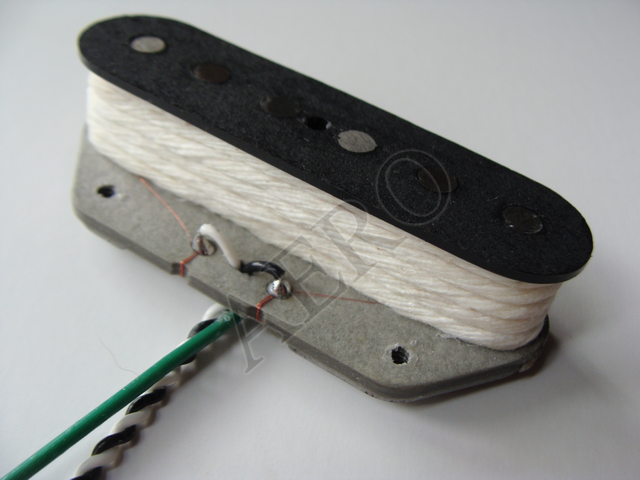

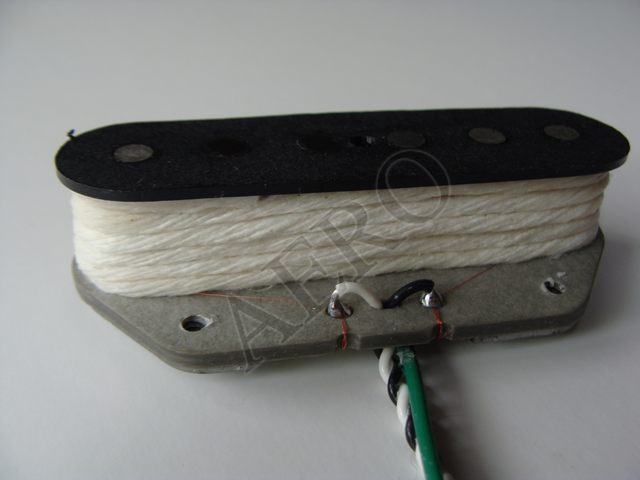

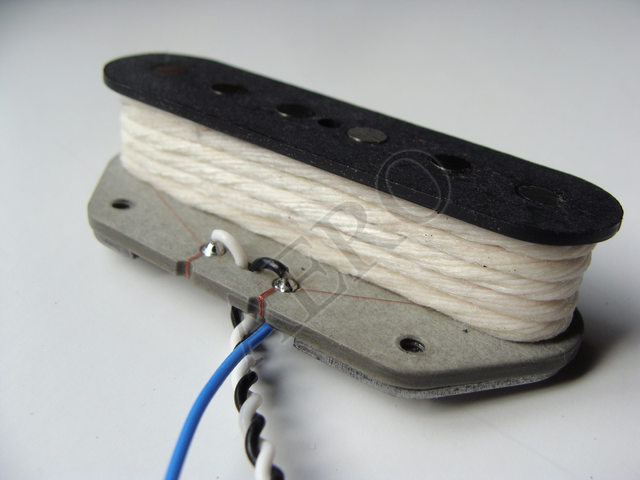

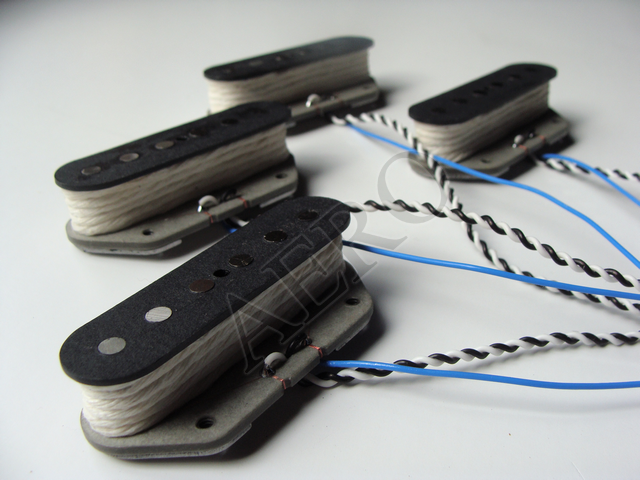

• Type 1 - Alnico 5 Standard Upgrade - White String Finish, Bottom Plate

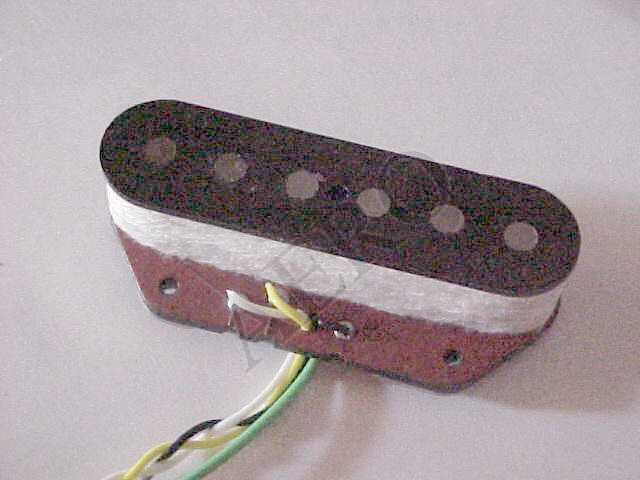

• Type 1 Tap - Esquire players rejoice! Two pickups in one, low & high outputs. If used in conjunction with a neck pickup, and a re-wire of a standard Tele switch, the middle hum cancelling position is more balanced - White String Finish, Bottom Plate

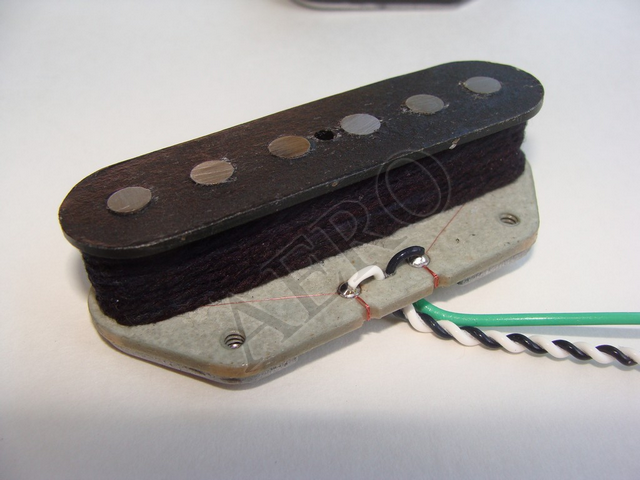

• Type 2 - Low impedance with clear and open sound. Very good for Nashville and pedal-steel-type bending - Black Tape Finish, Bottom Plate
• Type 3 - Alnico 2 - Darker somewhat colored sound - White String Finish, Bottom Plate
• Type 7 - Alnico 3 - Mid range sounding - White String Finish, Bottom Plate

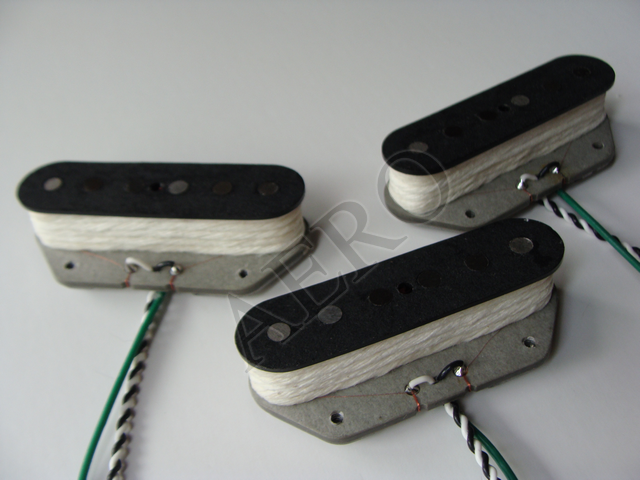

• Type 13 - Alnico 2 - This pickup is designed for heavier Tele's, "magnet distortion" has the feel of bass response - White String Finish, Bottom Plate
• Type 14 - Differntly voiced Type 1 - White String Finish, Bottom Plate
• Type 15 - Very Low impedance version of Type 3 - Black Tape Finish, Bottom Plate

Pricing +

Depending Upon Options (USD)

$140.00 - $250.00

Items in Stock +

None

Notes +

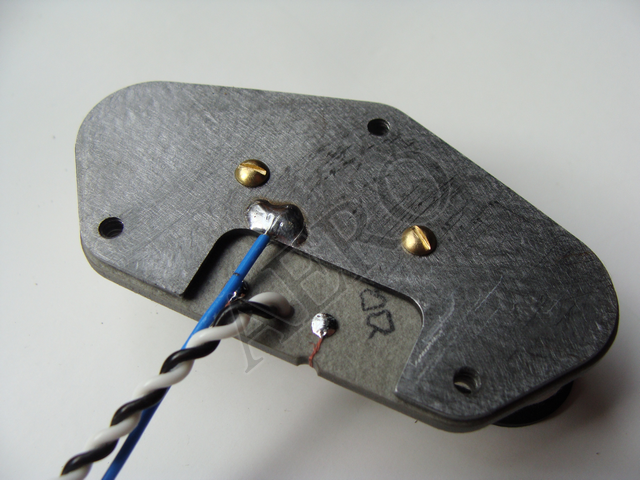

1. Green Wire "plate-ground" - The bridge pickup plate is the bridge ground for original Tele guitars. Tele pickups, except Aero, attach the (-) signal wire to the plate, i.e., pickup ground is also bridge ground. Aero Telle pickups separate signal return (-) from bridge ground by adding a 3rd wire. This prevents stray ground signal from entering the pickup (-). Additionally if AC hot is accidentally applied to ground, it's not also applied to the pickup.
2. Yellow Wire "tap" - Only present on coil tap pickups

Options +

1. ESS - Exact Sting Spacing
2. Magnet Radius
3. Black String Finish
4. Black Tape Finish

Wiring Color Code +

• Standard Wiring

  WHITE	:	(+) Positive
  BLACK	:	(-) Negative (Ground)
  GREEN	:	Bottom Plate Ground (Bridge Ground)

• Coil Tap Wiring

  WHITE	:	(+) Positive
  YELLOW	:	Coil Tap (+) Positive
  BLACK	:	(-) Negative (Ground)
  GREEN	:	Bottom Plate Ground (Bridge Ground)

Reviews, Clips, & Videos +

None

Drawings & Tech-Info +

None
